Open Source Steel

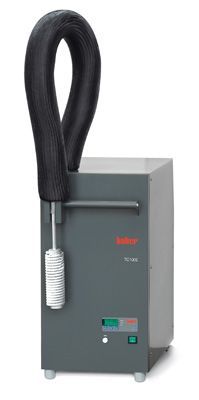

Huber TC100E Spez Air-Cooled-100C Immersion Cooler

Huber TC100E Spez Air-Cooled-100C Immersion Cooler

Regular price $ 15,444.50
Regular price Sale price $ 15,444.50
Sale Sold out
Shipping calculated at checkout.

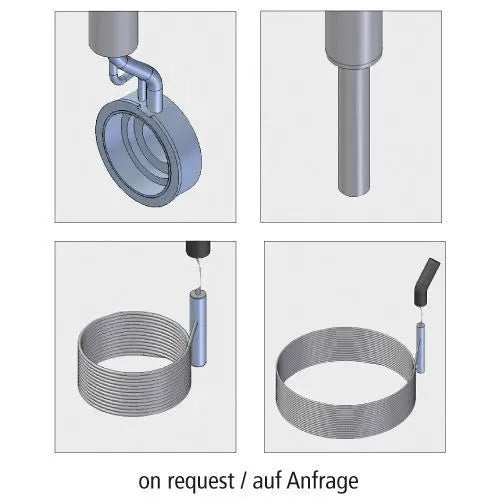

The Huber TC range of immersion coolers are a flexible solution for a variaty of cooling tasks. The devices are simple and universally used for rapid cooling of fluids. Typical applications include counter-cooling for heat circulation thermostats or replacement of dry ice. For many applications immersion coolers are also an environmentally friendly alternative to mains water cooling. The TC immersion coolers are suitable for unsupervised use, for cooling tasks which require continuous cooling or as a variant with temperature control and a Pt100 probe. The models with the type affix "E have an LED display with entry of nominal values and regulate with a precision of 0.5 K. A spiral-shaped or flexible immersion cooling probe made out of stainless steel is available for all models so that fluids can be cooled in virtually all vessel types. The compact housing is made from high quality stainless steel, and is fitted with carrying grips.

 Plug type: 6-15P

Standard Packages

Standard package



 Part description

 Quantity

Part image

HUBER TC100 Air-Cooled -100°C Immersion Cooler 1 pc

External Thermocouple Probe 1 pc

Power Cord 1 pc

User's manual 1 pc







Huber TC100 features

  • Universal solution for many cooling tasks
  • Rapid cooling of fluids
  • Ideal for counter-cooling or as a replacement of dry ice

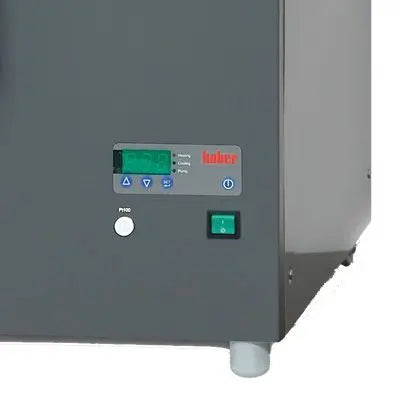

  • LED temperature display
  • Easy operation with only three keys
  • Compact, space-saving construction
  • Robust housing with carrying grips

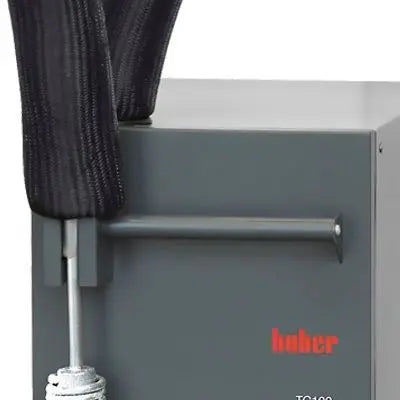

  • High quality stainless steel immersion probe
  • Temperature controller, stability ±0.5°C
  • External Pt100 sensor included (#6138)




Technical details and dimensions are subject to change. No liability is accepted for errors or omissions. Illustrations can deviate from the original.


Output data valid for Room temperature 20°C. If the ambient temperature rises, the cooling capacity may drop.


in accordance with EN60034-1 the following voltage and frequency tolerances are valid:
Voltage + / - 5% with a simultaneous frequency tolerance of + / - 2%
Example     -5% voltage and +2% frequency -> not allowed!
                 -5% voltage and - 2% frequency -> allowed


Information to Electromagnetic compatibility:
Classification (disturbance) to EN55011: Class A, Group 1
