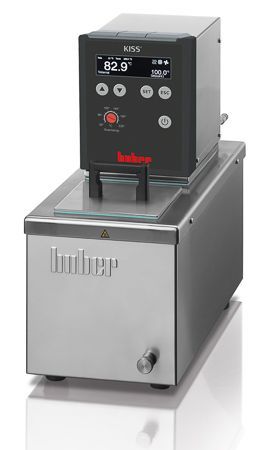

HUBER KISS 205B 200C 5L Capacity Heating Circulator

HUBER KISS 205B 200C 5L Capacity Heating Circulator

(0)

$ 3,675.40
$ 3,675.40
Sale Sold out
Shipping calculated at checkout.
Time to choose the lenses that are right for you
What type of lenses do you need *
We need to get your bifocal or varifocal lenses right, this is how it works *
When you order bifoclas or varifocals we send the frames out to you before making your prescription lenses. You will use the frames to take some important measurments. Next, you'll send back your frames free of charge so that we can produce your perfect prescription lenses. We know some other websites don't do this, but we think it's important to get your glasses right. Any questions, please do contact us!
What numbers do you need to provide us with from your prescription? *
Please select all of the numbers you can see information for on your prescription.
Right Sphere (SPH) *
Left Sphere (SPH) *
Right Cylinder (CYL) *
Left Cylinder (CYL) *
Right Axis (AXI) *
Left Axis (AXI) *
Right Near/reading addition (ADD) *
Left Near/reading addition (ADD) *
Right Addition (ADD) Intermediate *
Left Addition (ADD) Intermediate *
We need to provide you with a personal quote. *
Your prescription is slightly outside of the standard range for getting an online order right. We would like to provide you with the perfect pair of glasses, at an affordable price. Please contact us using the details on our website and we can provide you with an affordable quote that best meets your needs. It's quick, easy and it mean you'll get the right glasses for you.
Do you have one or two Pupillary Distance (PD) values? *
Some people might see more that one PD number on their prescrition. Measuring your PD is important and easy, please see our 'how to measure your PD' help section. If you do not add a PD measurement we will use the standard average 63mm for men and 60mm for women.
Pupillary Distance (PD) *
Pupillary Distance (PD) - RIGHT *
Pupillary Distance (PD) - LEFT *
Have a prism value on your prescription? *
OD - Left Direction *
OD - Left Power *
OD - Right Direction *
OD - Right Power *
Add transitions lenses? *
Transition lenses are the lenses that darken in the sunlight and lighten in softer light or the dark. They offer both style and convenience, and can help protect your eyes from UV. Our lenses use genuine Transitions technology.
What colour transitions lenses would you like? *
Would you like to add Blue Shield Technology? *
Blue shield technology includes a blue light blocker to reduce exposure to potentially harmful light from extended periods using electronic devices like phones, tablets and laptops. It also includes an anti-reflective coating to reduce glare and increase the amount of visible light passing through the lens. Plus toughened surfaces reduce the amount and effect of scratches.
Choose your lens package *
Want to add UV 400 protection? *
UV400' refers to UV rays at the top end of the UV spectrum, up to the 400-nanometre wavelength. Sunglasses with this level of protection block an even wider spectrum than the CE and British Standard models, making them the ultimate protection for your eyes.
Want to add a tint to your lenses? *
What colour tint would you like to add? *
How dark would you like your tint to be? *
How dark would you like your tint to be? *
How dark would you like your tint to be? *
How dark would you like your tint to be? *
How dark would you like your tint to be? *
How dark would you like your tint to be? *
Just to check *
I confirm that my prescription is correct with the correct values entered, my prescription is not over 2 years old, I am over 16 years of age, and that I am neither registered blind or partially sighted. I have read and agree to the Terms of Sale.
 More payment options
The new Huber KISS controller combines state-of-the-art technology with simple operation and stylish design. KISS models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge). Heating bath circulation thermostats with a stainless steel bath allow the temperature control of internal and external thermoregulation tasks. Items can be directly thermoregulated by placing them in a thermostat bath and the control of externally connected applications is also possible. The units are suitable for a number of typical temperature control tasks such as sample temperature control, materials testing, quality control, etc. The devices are fitted with overtemperature and low level protection in line with Safty Class III/FL according to DIN 12876. A powerful pressure/suction pump ensures optimal circulation and temperature homogeneity in the thermostat bath and also allows temperature control of externally connected applications. Power: 200-240V 1~/2~50/60Hz
Standard Packages

Standard package



 Part description

 Quantity

Part image
HUBER KISS 205B 200°C 5L Capacity Heating Circulator 1 pc

Mini-USB Cable 1 pc

Blank Plug for M16x1 2 pcs

NW12 Kiss 2 pcs

Bath Cover 1 pc

Sleeve Nut Threads M16X1.5 2 pc

Power Cord 1 pc

User's manual in a CD 1 pc


Huber KISS 205B features

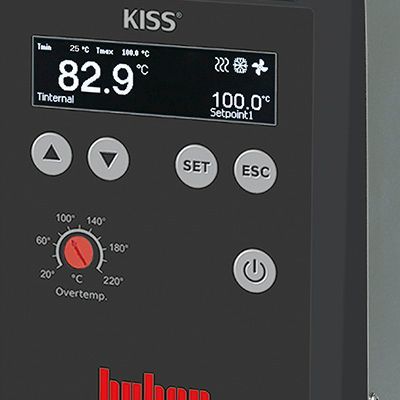

  • KISS temperature controller
  • Bright, large OLED display
  • Simple operation with menu navigation
  • Simultaneous display of setpoint, Tmin, Tmax and actual temperature
  • Status displays for pump, cooling and heating
  • Overtemperature and low level protection
  • Safety class III/FL (DIN 12876)
  • USB and RS232 interfaces
  • Autostart function for power failure
  • 3 colour versions available: grey (standard), blue, red
 Click here to download product brochure
 Click here to visit Huber website for details   Huber KISS cooling and heating circulators

  
General information & temperature controller
Temperature range (-30)45...200C
Temperature stability ±0.05C
Temperature display OLED Display
Alarm message optical, acoustical
Controller KISS
Safety class III / FL
Protection class IP20
Dimensions(W x D x H) 178 x 337 x 355mm|7.01 x 13.27 x 13.98inches
Weight 9kg|19.84pounds
Heating / cooling capacity
Heating capacity 1.5-2.1 kW
Circulation pump
Pressure pump max. 14 lpm;0.25 bar|3.7gpm;362.5psi
Suction pump max. 10.5 lpm;0.17 bar|27.74gpm;246.5psi
Pump connection M16x1 AG male
Connections
Digital interface USB, RS232
Operating data
Permissible ambient temp. 5...40C
Bath openingW x D / BD 105 x 90 / 150mm|4.13 x 3.54 / 5.91inches
Bath volume 5Liters|1.32gal
Power supply 200-240V 1~/2~ 50/60Hz
